Tesys D

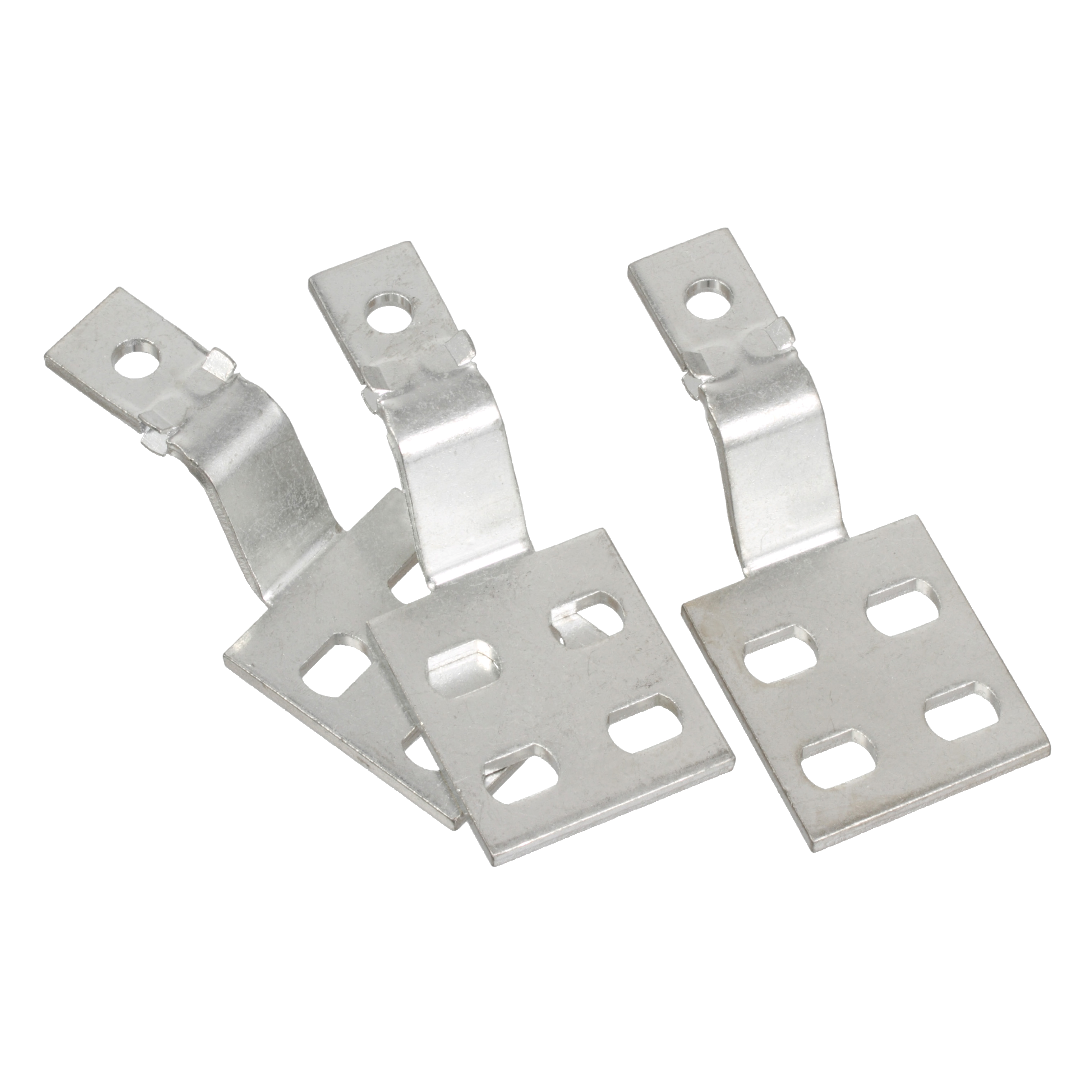

TeSys F connection accessory, right-angled connectors for 3-pole contactors LC1 F150, F185 and overload relays LR9 F69, F71, F*69, F*71. For cables coming from top or bottom of the contactor, it provides a large surface extension to connect until 4 cables per pole. Set of 3 connectors. Green Premium..

TeSys F connection accessory, right-angled connectors for 3-pole contactors LC1 F225, F265, F330, F400 and overload relays LR9 F75, F*75. For cables coming from top or bottom of the contactor, it provides a large surface extension to connect until 4 cables per pole. Set of 3 connectors. Green Premiu..

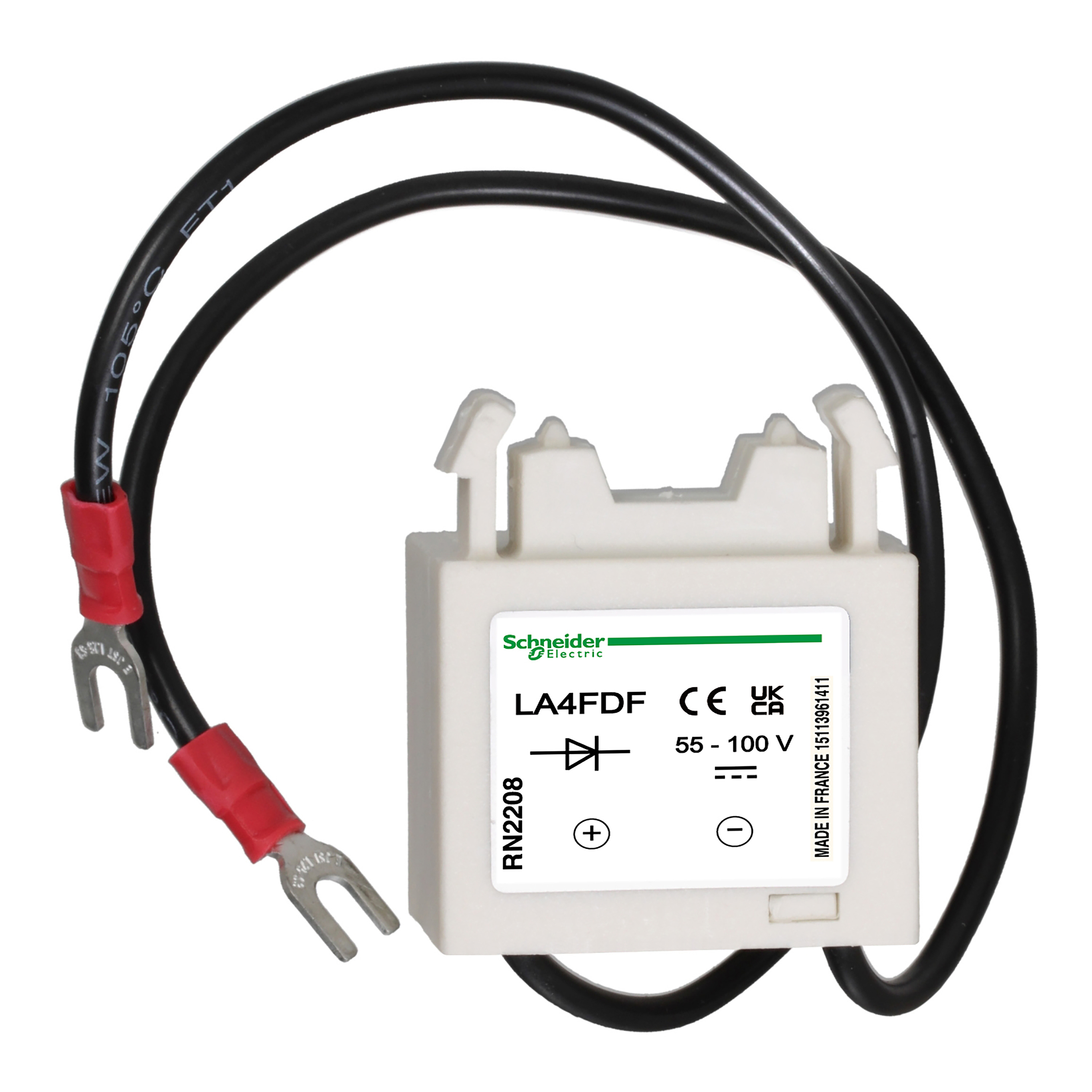

TeSys F suppressor block, for coil protection of contactors LC1F, LC2F, CR1F. To be used for 55-110V AC or DC control circuits, it provides a no transient voltage diode protection with an increase in drop-out time. Clipping on bracket LA9D09981 (to be ordered separately), to be connected to the coil..

TeSys F mechanical interlock kit, for assembling pairs of contactors LC1 F185, F225 and CR1 F185. To be used in horizontal assembling of 3-pole and 4-pole identical contactors, for reversing and changeover applications. It conforms to RoHS/REACh regulation...

TeSys F mechanical interlock kit, for assembling pairs of contactors LC1 F265, F330, F400, F500, and CR1 F265, F400, F500. To be used in horizontal assembling of 3-pole and 4-pole identical contactors, for reversing and changeover applications. It conforms to RoHS/REACh regulation...

TeSys F mechanical interlock kit, for assembling pairs of contactors LC1F630 and CR1F630. To be used in horizontal assembling of 3-pole and 4-pole identical contactors, for reversing and changeover applications. It conforms to RoHS/REACh regulation...

..

..

TeSys K suppressor module, for contactors LC.K, CA2K. To be used with 110-250V AC control circuits, it provides RC protection limiting the transient voltage to 3 Uc max. Clip-on mounting on front of contactor (no tools required), it incorporates a power-on LED indicator. Sold in lots of 5 units. It ..

..

TeSys Deca suppressor module, for contactors LC1D09-D38, LC1DT20-DT40 and control relays CAD. To be used with 5-600V DC control circuit voltage, it provides a flywheel diode protection ensuring no transient overvoltage. Clip-on side mounting, overall size of the contactor is unchanged. Green Premium..

TeSys LRD thermal overload relay, 0.16A/690V, thermal setting range 0.1-0.16A, tripping class 10A, for protection of 3-phase motors less than 0.06kW@400V. Differential device with phase failure (loss). It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for sim..
